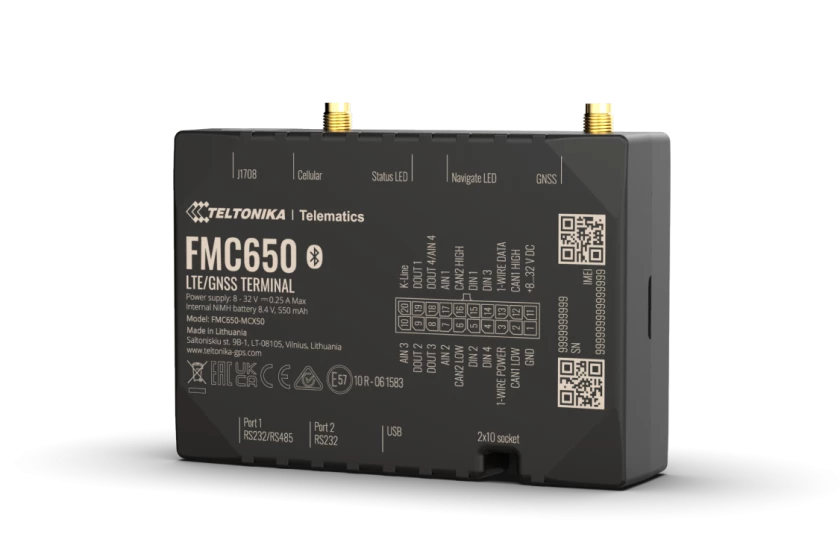

- FMC650 - 4G FMC650 - 4G
- Description
- Shipping & Returns
- Reviews
PRODUCT SPECIFICATIONS
Module
Name
FMC650-MBX50: MeiG SLM320-PE2C
Technology
LTE (CaT1) / 2G (GSM / GPRS)
GNSS
Module name
Airoha AG3335MB
GNSS
GPS, GLONASS, GALILEO, BEIDOU, QZSS
Receiver
L1: 75 acquisition/tracking channel
L5: 60 tracking channel
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
Hot start
1 s
Warm start
< 25 s
Cold start
< 32 s
Cellular
Technology
LTE Cat 1, GSM
2G bands
FMC650-MBX50: B2/B3/B5/B8
4G LTE bands
FMC650-MBX50:
LTE-FDD: B1/B3/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
Data transfer
LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL)
GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
Data support
SMS (text/data)
Transmit power
Class 4 for GSM850/900: 31±2dBm
Class 1 for GSM1800/1900: 30±2dBm
Class 3 for LTE-TDD: 23±3dBm
Class 3 for LTE-FDD: 23±3dBm
Bluetooth LE: up to 6.64 dBm
Power
Input voltage range
8–32 V DC with overvoltage (compatible with pulse 5a and pulse 5b) and reverse polarity protection
Internal Back-up battery
550 mAh Ni-Mh, 8.4 V battery
Internal fuse
3A, 125V
2 W max. Current consumption at 12 V
At 12V < 4 mA (Deep Sleep)
At 12V < 11 mA (Online Deep Sleep)
At 12V < 32 mA (GPS Sleep)
At 12V < 45 mA (nominal with no load)
At 12V < 0.25 A Max. (with full Load / Peak)
2 W max. Current consumption at 24 V
GPRS: average 35 mA
Nominal: average 24 mA (with no load)
GNSS sleep: average 17 mA
Deep Sleep: average 2,9 mA
Online Deep Sleep: average 7 mA
Full Load/Peak: <0.25A Max
Bluetooth® Technology
Name
Blue NRG232
Specification
5.0 + LE
Supported peripherals
Temperature and Humidity sensor, Universal BLUETOOTH® LE sensors support
Physical specification
Dimensions
104,1 x 76,8 x 31,5 mm (L x W x H)
Weight
197 g
Operating environment
Operating temperature (without battery)
-40 °C to +85 °C
Storage temperature (without battery)
-40 °C to +85 °C
Operating humidity
5% to 95% non-condensing
Storage temperature (with battery)
-20 °C to +45 °C
Ingress Protection Rating
IP41
Battery storage temperature
-20 °C to +45°C
Interface
Digital Inputs
4
Digital Outputs
4
Analog Inputs
4
1-Wire
1
RS232
2
RS485
1
CAN J1939
2
J1708
1
K-line
1
GNSS antenna
External High Gain (L1+L5)
Cellular antenna
External High Gain
USB
2.0 Mini-USB – device can be powered by USB for easier device configuration
LED indication
2 status LED lights
SIM
2x SIM Card (Dual-SIM) or 1x eSIM
Memory
16 MB internal flash memory and external Micro SD card up to 32GB
Switchable CAN terminals
Supported on CAN1 and CAN2 lines
Features
Sensors
Accelerometer
Scenarios
Green/Eco Driving, Over Speeding detection, Jamming detection, Excessive Idling detection,
Towing detection, Crash detection, Immobilizer, iButton Read Notification
Functionalities

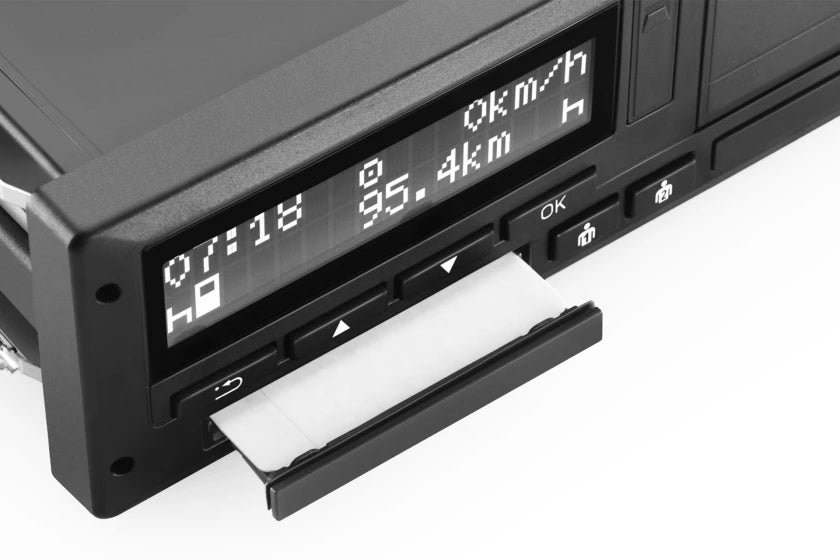

Auto Geofencing, Manual Geofencing, Trip detection, Odometer, Fuel counter, GNSS Unplug Detection, DDD download and Tacho online data, Offline tracking
Supported peripherals
Garmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, LV-CAN200, CAN FMS (J1939, J1708), K-line data, Continental tire pressure measurement sensor, Iridium SBD (Iridium Edge/TSM232), Carrier freezer, Log Mode, NMEA, TCP ASCII/Binary, Temperature and humidity sensor, Universal BLE® sensors support
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep
Configuration and firmware update
FOTA Web, FOTA, Teltonika Configurator
SMS
Configuration, Events, DOUT control, Debug
GPRS commands
Configuration, DOUT control, Debug
Time Synchronization
GNSS, NITZ, NTP
Fuel monitoring
LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, CAN FMS, Ultrasonic level sensor
Ignition detection
Digital Input, Accelerometer, External Power Voltage
RS232 Modes
Log Mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, TCP ASCII/Binary, TCP ASCII/Binary (Buffered), Rec to LCD, Atol Tachograph, UL202-2 Fuel Sensor, Iridium Edge/TSM232 Satellite backup, Carrier Freezer
RS485 Modes
Silent, Log Mode, NMEA, LLS, TCP ASCII/Binary, TCP ASCII/Binary (Buffered)
Certification & approvals
Regulatory
CE-RED, UKCA, E-mark, RCM, Pulse 5a, SIRIM QAS, ICASA, CITC
