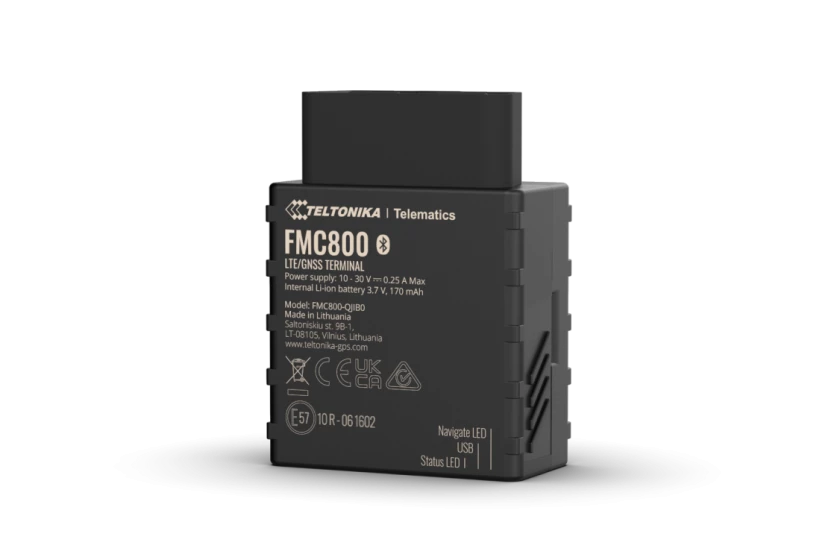

- FMC800 - 4G FMC800 - 4G
- Description
- Shipping & Returns
- Reviews
PRODUCT SPECIFICATIONS
Module
Name
FMC800-QJIB0: Quectel EG915U-EU with Teltonika TM2500
Technology
LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH® LE
GNSS
GNSS
GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver
33 channel
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Hot start
< 1 s
Warm start
< 25 s
Cold start
< 35 s
Cellular
2G bands
FMC800-QJIB0: GSM: B2/B3/B5/B8
4G LTE bands
FMC800-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28
Data transfer
LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
Data support
SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, MQTT)
Power
Input voltage range
10 - 30 V DC with overvoltage protection
Internal Back-up battery
170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal fuse
3A, 125V
Bluetooth® Technology
Specification
4.0 + LE
Supported peripherals
Temperature and Humidity sensor, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support
Physical specification
Dimensions
67,2 x 49,6 x 25 mm (L x W x H)
Weight
63 g
Operating environment
Operating temperature (without battery)
-40 °C to +85 °C
Storage temperature (without battery)
-40 °C to +85 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP41
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +60 °C
Battery storage temperature
-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
Interface
Connection

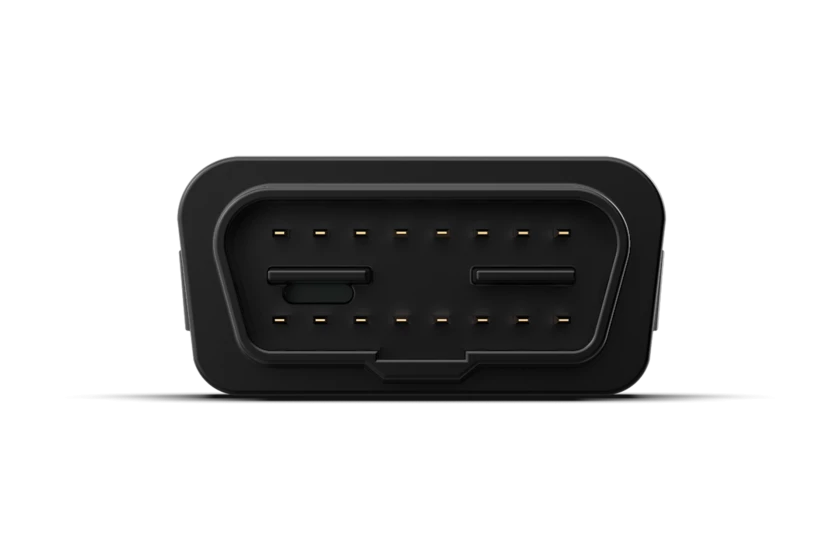

OBDII Socket
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
2.0 Micro-USB
LED indication
2 status LED lights
SIM
Micro-SIM
Memory
128MB internal flash memory
Features
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update
FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology), FMBT mobile application (Configuration)
SMS
Configuration, Events, Debug
GPRS commands
Configuration, Debug
Time Synchronization
GNSS, NITZ, NTP
Ignition detection
Accelerometer, External Power Voltage
Certification & approvals
Regulatory
FMC800-QJIB0: CE / RED, UKCA, E-Mark, RoHS, REACH, Declaration of IMEI assignment,
RCM, CITC
