PRODUCT SPECIFICATIONS
Module
Name
TAT100-TAIB0: Teltonika TM2500
TAT100-TAIBA: Teltonika TM2500
Technology
2G(GSM/GPRS)/GNSS/BLUETOOTH ® LE
GNSS
GNSS
L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS*, QZSS*, DGPS*, AGPS*
* Optional modes available with custom firmware applications, for more information contact your sales manager.
Receiver
33 tracking channel
99 acquisition channel
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
Cellular
Technology
GSM/GPRS
2G bands
Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer
GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
Data support
SMS (text/data)
Power
Internal battery
TAT100-TAIB0:
2200mAh, 2S, extremely low self-discharge Li-SOCl2
batteries 7.2V, Non-rechargeable
TAT100-TAIBA:
2200mAh, 3S, extremely low self-discharge Li-SOCl2
batteries 10.8V, Non-rechargeable
Battery life
TAT100-TAIB0:
2-cell battery:
Up to 5 years (when used as a backup tracker only via Bluetooth®)*
Up to 4 years (1 LBS – cell towers report per day)*
Up to 3 years (1 GNSS report per day)*
TAT100-TAIBA:
3-cell battery:
Up to 6 years (when used as a backup tracker only via Bluetooth®)*
Up to 5 years (1 LBS – cell towers report per day)*
Up to 4 years (1 GNSS report per day)*
*Battery life estimates are influenced by many factors such as outdoor temperature, frequency of reporting, installation, and orientation of the device, network coverage, additional functionalities (like Bluetooth® scanning enabled) and more.
Bluetooth® Technology
Specification
4.2 + LE
Supported peripherals
EYE Sensors, EYE Beacons (recovery mode only), Universal Bluetooth® LE sensors support
Physical specification
Dimensions
78 x 63 x 28 mm (L x W x H)
Weight
TAT100-TAIB0: 119g (with 2 cells battery)
TAT100-TAIBA: 138g (with 3 cells battery)
Operating environment
Operating temperature (with battery)
-35 °C to +75 °C
Storage temperature (with battery)
-40 °C to +85 °C (Recommended max. 30°C)
Operating temperature (without battery)
-20 °C to +60 °C
Operating humidity
5% to 95% non-condensing

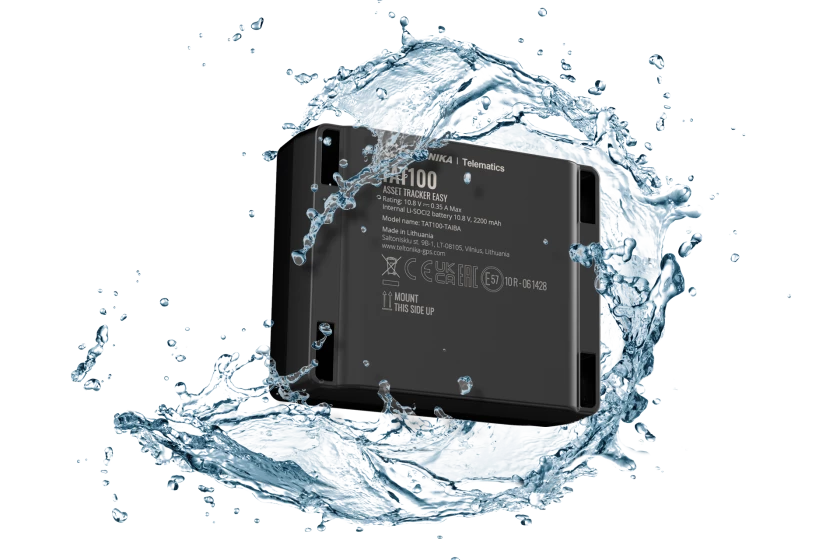

Ingress Protection Rating
IP68
Battery discharge temperature
-60 °C to +85 °C
Battery storage temperature
Recommended max. 30°C
Interface
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
2.0 Micro-USB
LED indication
2 status LED lights
SIM
Micro-SIM
Memory
128MB internal flash memory
Features
Sensors
Accelerometer
Scenarios
Accelerometer wake up, GNSS and LBS, Bluetooth® LE sensors support, Recovery mode, Periodic tracking on stop / on move, Scheduler with time zones, Backup tracking, Static navigation, Lost Bluetooth® LE sensors
Sleep modes
Single custom sleep mode
Configuration and firmware update
FOTA WEB, Teltonika Configurator (USB)
SMS
Configuration, Events, Debug
GPRS commands
Configuration, Debug
Time Synchronization
GNSS, NITZ, NTP
Certification & approvals
Regulatory
CE/RED, E-Mark, EAC, UKCA, UA.TR, REACH, RoHS, Anatel, SIRIM QAS
