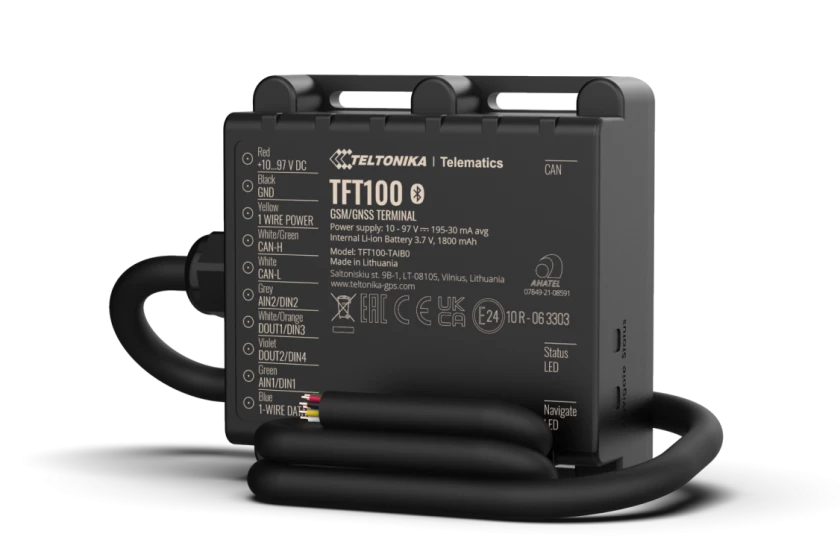

- TFT100 (CAN) TFT100 (CAN)
- Description
- Shipping & Returns
- Reviews
PRODUCT SPECIFICATIONS
Module
Name
Teltonika TM2500
Technology
GSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSS
GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS
Receiver
33 tracking channel
99 acquisition channel
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Hot start
< 1 s
Warm start
< 25 s
Cold start
< 35 s
Cellular
Technology
GSM/GPRS
2G bands
Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer
GPRS Multi-Slot Class 12 (up to 85.6 kbps), GPRS Mobile Station Class B
Data support
SMS (text/data)
Power
Input voltage range

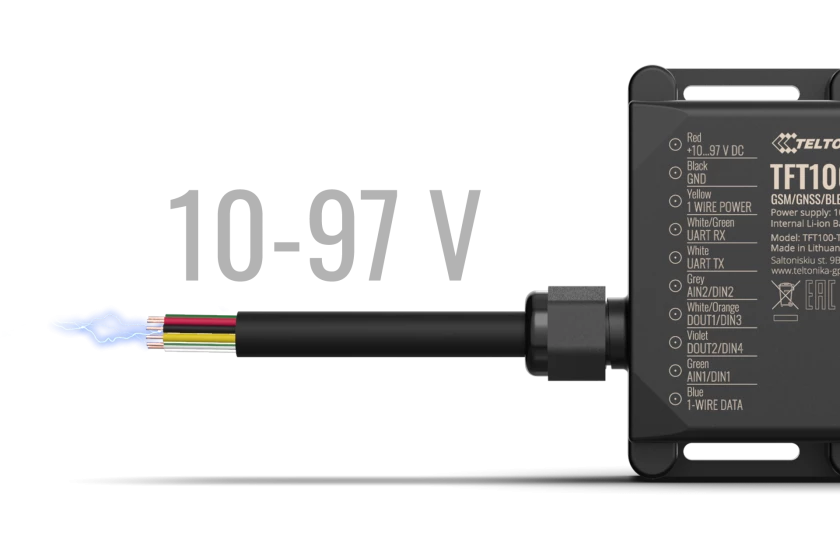

10–97V
Internal Back-up battery
1800 mAh Li-Ion battery, 3.7V (6.66Wh)
Bluetooth® Technology
Specification
4.0 + LE
Supported peripherals
ELA sensors, EYE sensors, Beacons
Physical specification
Dimensions
72,5 x 73 x 27,3 mm (L x W x H)
Weight
169 g
Interface
CAN
1
UART
1
RS232
1
RS485
1
Connection
One modification per device:
- CAN modification (CAN-H, CAN-L)
- UART modification (UART-RX, UART-TX)
- RS232 modification (RS232-IN, RS232-OUT)
- RS485 modification (RS485-A, RS485-B)
1-Wire data
1
1-Wire power
1
Analog inputs / Digital inputs
2
Digital outputs / Digital inputs
2
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
2.0 Micro-USB
LED indication
2 status LED lights
SIM
Micro-SIM
Memory
128MB internal flash memory
Operating environment
Operating temperature (without battery)
-20 °C to +75 °C
Storage temperature (without battery)
-20 °C to +75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP67
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +70 °C
Battery storage temperature
-10 °C to +45 °C
Battery discharge temperature
-20 °C to +70 °C
Features
Scenarios
Eco/Green Driving, Over Speeding, Jamming, Excessive Idling, FallDown, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip/Odometer, Immobilizer, iButton, DOUT control via call, DOUT control via Ignition, Last Known Position, Timestamp Backup, Manual CAN, Manual CAN commands, Manual J1939
Sensors
Accelerometer
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update
FOTA Web, Teltonika Configurator (USB, Bluetooth®)
SMS
Configuration, Events, Debug
GPRS commands
Configuration, Debug
Time Synchronization
GNSS, NITZ, NTP
Ignition detection
Accelerometer, External Power Voltage, DIN1, DIN3, DIN4, CAN
Certification & approvals
Regulatory
CE/RED, EAC, E-Mark, Anatel, UKCA, Ukrainian UCRF, RoHS, REACH, E-Mark, IP67
