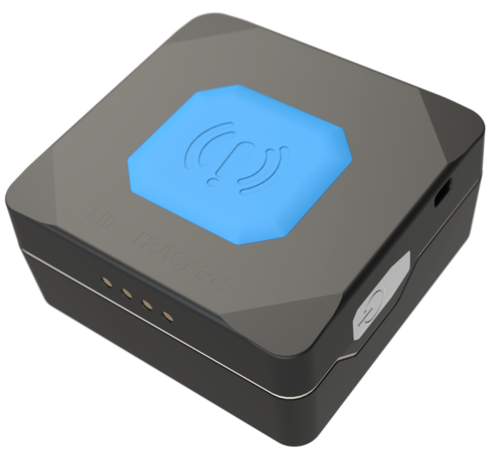

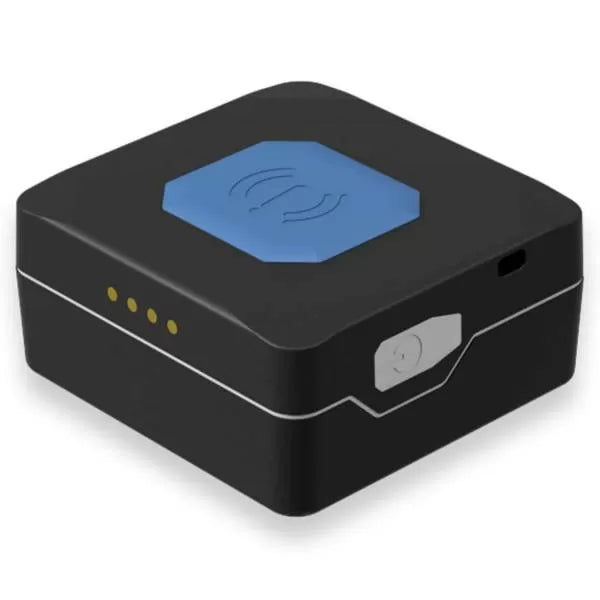

- TMT250 TMT250
- Description
- Shipping & Returns
- Reviews
PRODUCT SPECIFICATIONS
Module
Name
Teltonika TM2500
Technology
2G (GSM/GPRS)/GNSS/BLUETOOTH® LE
GNSS
GNSS
L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS*, QZSS*, DGPS*, AGPS*
* Optional modes available with custom firmware applications, for more information contact your sales manager.
Receiver
33 tracking channel
99 acquisition channel
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Hot start
< 1 s
Warm start
< 25 s
Cold start
< 35 s
Cellular
Technology
GSM/GPRS
2G bands
Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer
GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)
Data support
SMS (text/data)
Power
Internal Back-up battery
800mAh rechargeable Li-Ion battery, 3,8V, 3.04Wh
Bluetooth® Technology
Specification
4.0 + LE
Physical specification
Dimensions
44 x 43 x 20 mm (L x W x H)
Weight
40 g
Interface
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
4 pin magnetic USB Cable
LED indication
1 RGB LED
Buttons
2 configurable buttons
SIM
Micro-SIM
Memory
128MB internal flash memory
Operating environment
Operating temperature (without battery)
-40 °C to +85 °C
Storage temperature (without battery)
-40 °C to +85 °C
Operating temperature (with battery)
0 °C to +40 °C
Storage temperature (with battery)
-20 °C to +60 °C
Ingress Protection Rating
IP67
Operating humidity
under 85% non-condensing
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +58 °C
Battery storage temperature
-20 °C to +45 °C for 3 months
Features
Sensors
Accelerometer
Scenarios
Alarm button, Man-down detection, Indoor Tracking, Movement/No Movement Events, 50 Manual Geofence zones, Over Speeding, Action on call feature, on Demand Tracking, Smart algorithm of GPRS data sending for GPRS traffic saving, Asset tracking, Home Zone, Real Time tracking, Power On/Off event, Event on a Pressed Button, On Demand tracking via button press, Beacon On Demand tracking, Race Mode
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
SMS
Configuration, Events, Debug
GPRS commands
Configuration, Debug
Time Synchronization
GNSS, NITZ, NTP
Configuration and firmware update
FOTA Web, Teltonika Configurator (USB, Bluetooth® wireless technology)
Certification & approvals
Regulatory
CE/RED, EAC, Anatel, UKCA, RoHS, REACH
